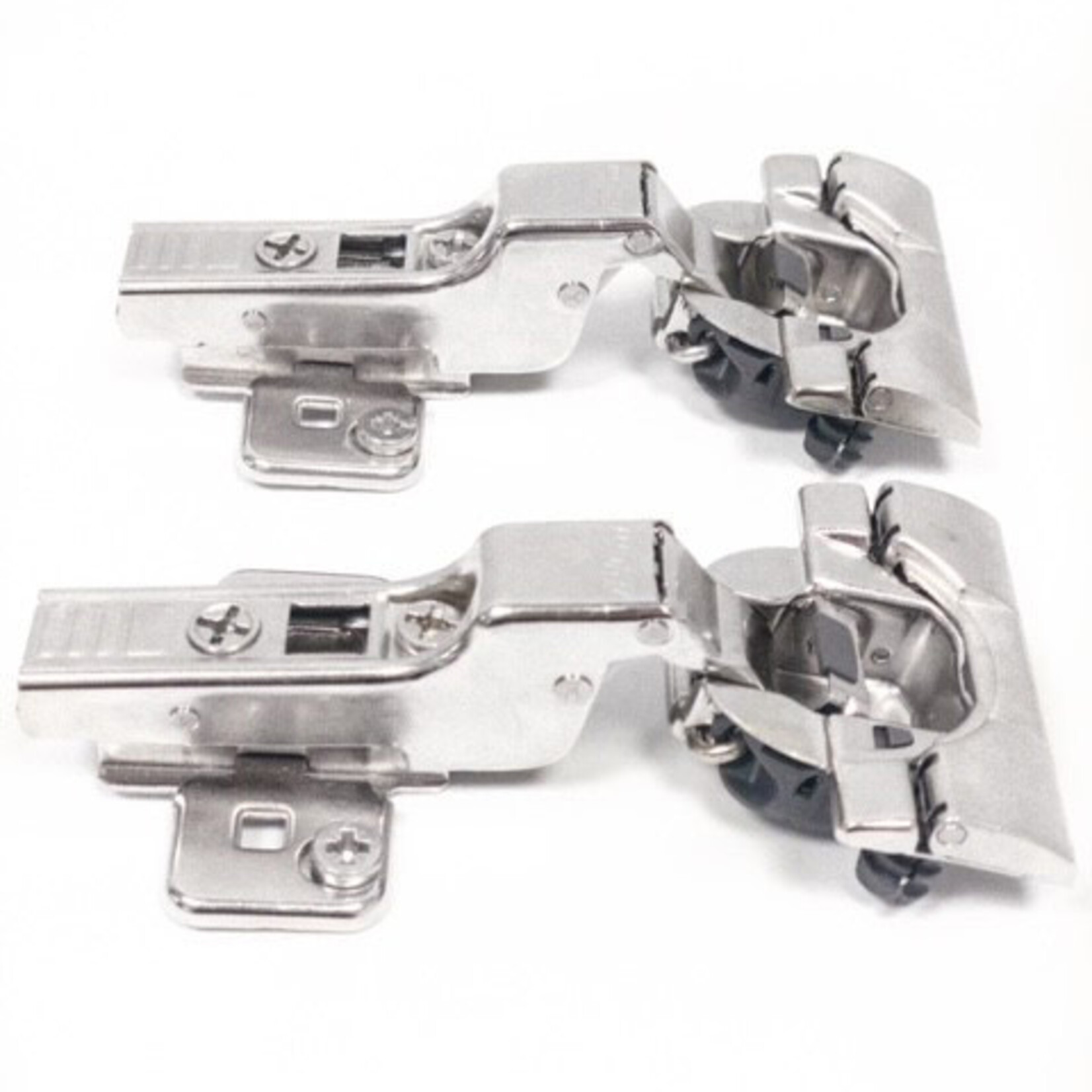

Blum - 110° Hinge - Soft-Close

Intended for use on doors from 16mm to 24mm (5/8 in to 15/16 in) thick. The 35mm (1 3/8 in) diameter hinge cup is 13mm (1/2 in) deep. For optimal performance, a minimum of two hinges should be installed per door and not mixed with other hinge styles.

Image	Article #	Closing Mechanism	Plate Fixing Type	Plate Height	Hinge Cup Depth	Hinge Cup Type	Door Type	Hinge Fixing Type	Motion Technology	Opening Angle
	BL71B35902	Soft-Close	Screw-on	0 mm	13 mm	35 mm	Standard Doors	Toolless	BLUMOTION	110°
	BL71B3550	Soft-Close			13 mm	35 mm	Standard Doors	Screw-On	BLUMOTION	110°
	BL71B36902	Soft-Close	Screw-on	0 mm	13 mm	35 mm	Standard Doors	Toolless	BLUMOTION	110°
	BL71B3580	Soft-Close			13 mm	35 mm	Standard Doors	Knock-in (with Dowel)	BLUMOTION	110°
	BL71B37902	Soft-Close	Screw-on	0 mm	13 mm	35 mm	Standard Doors	Toolless	BLUMOTION	110°
	BL71B3590	Soft-Close			13 mm	35 mm	Standard Doors	Toolless	BLUMOTION	110°
	BL71B3690	Soft-Close			13 mm	35 mm	Standard Doors	Toolless	BLUMOTION	110°
	BL71B3780	Soft-Close			13 mm	35 mm	Standard Doors	Knock-in (with Dowel)	BLUMOTION	110°
	BL71B3750	Soft-Close			13 mm	35 mm	Standard Doors	Screw-On	BLUMOTION	110°
	BL71B3790	Soft-Close			13 mm	35 mm	Standard Doors	Toolless	BLUMOTION	110°
	BL71B3680	Soft-Close			13 mm	35 mm	Standard Doors	Knock-in (with Dowel)	BLUMOTION	110°
	BL71B3650	Soft-Close			13 mm	35 mm	Standard Doors	Screw-On	BLUMOTION	110°

Details
